• FORM Charge EZGO RXV & TXT 48V 15A golf cart battery charger
  • FORM 48V 15A golf cart charge with triangle connector
  • Compatible with EZGO RXV & TXT golf carts with lead acid batteries
  • 48V 15A onboard charger compatible with lithium, LiFePO4, Lead-Acid & AGM batteries
  • 48V 15A golf cart charger that recovers drained batteries from storage
  • Improved battery sensing technology that protects and maintains your batteries
  • IP67 Waterproof Rating Protects Against Water, Dust & Corrosion
  • 48V 15A golf cart battery charger for lead acid batteries
1 11

FORM Charge

EZGO 48V 15A Golf Cart Charger - RXV & TXT - Lithium, LiFePO4, Lead Acid, AGM

EZGO 48V 15A Golf Cart Charger - RXV & TXT - Lithium, LiFePO4, Lead Acid, AGM

Safety & Reliability in Every Charge

$249.95 USD
$249.95 USD
Sale Sold out
Quantity

Set It & Forget It

  • 5 Stage Smart Charge Technology
  • SMARTSENSE Maintenance Mode

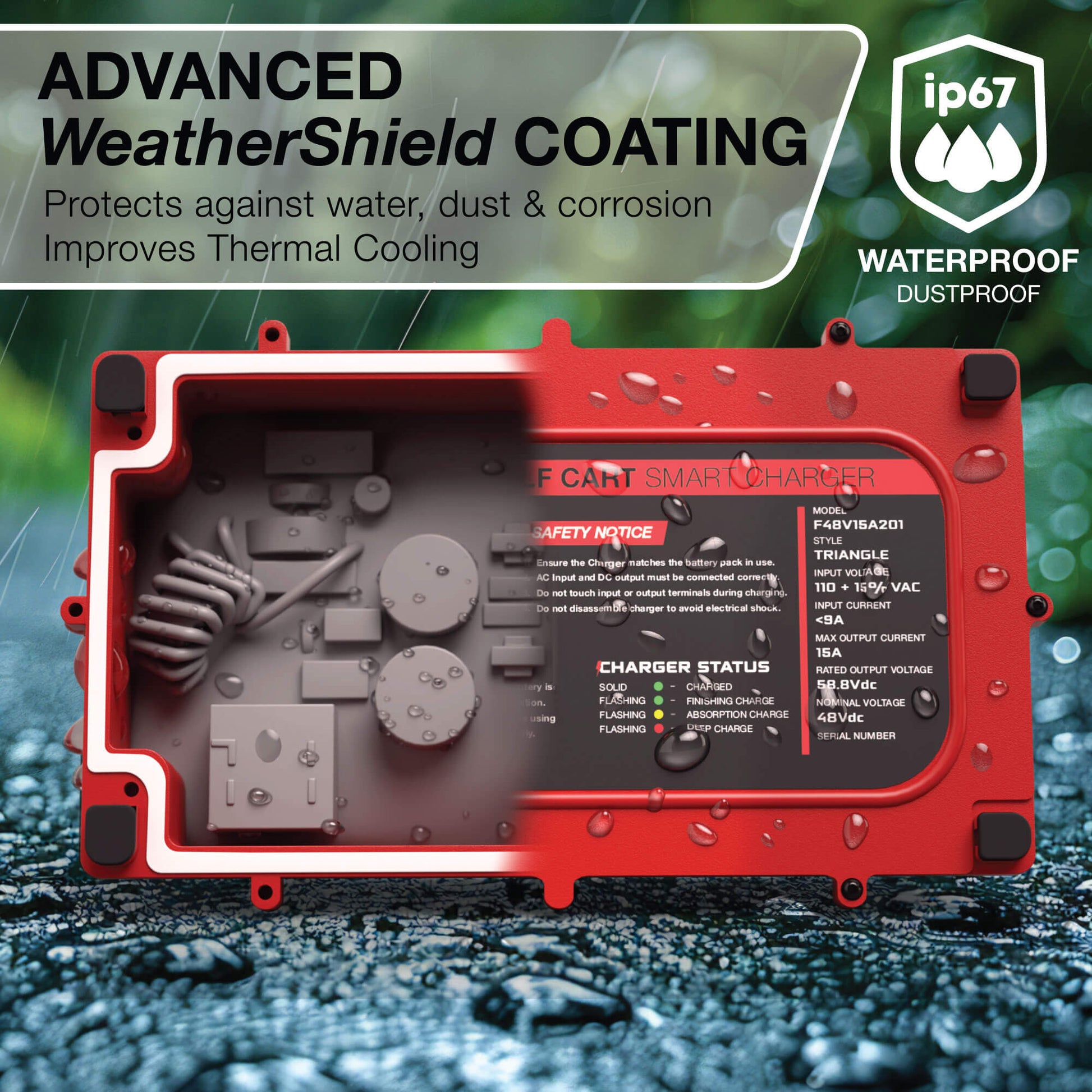

Advanced WeatherShield Coating

  • Protects Against Water, Dust & Corrosion
  • IP67 Waterproof

SparkGuard Technology

  • Automatically cuts the voltage when disconnected from your cart

Compatible Golf Carts

EZGO RXV
2008 - Present

EZGO TXT
2014 - Present
  • Free Shipping & Returns

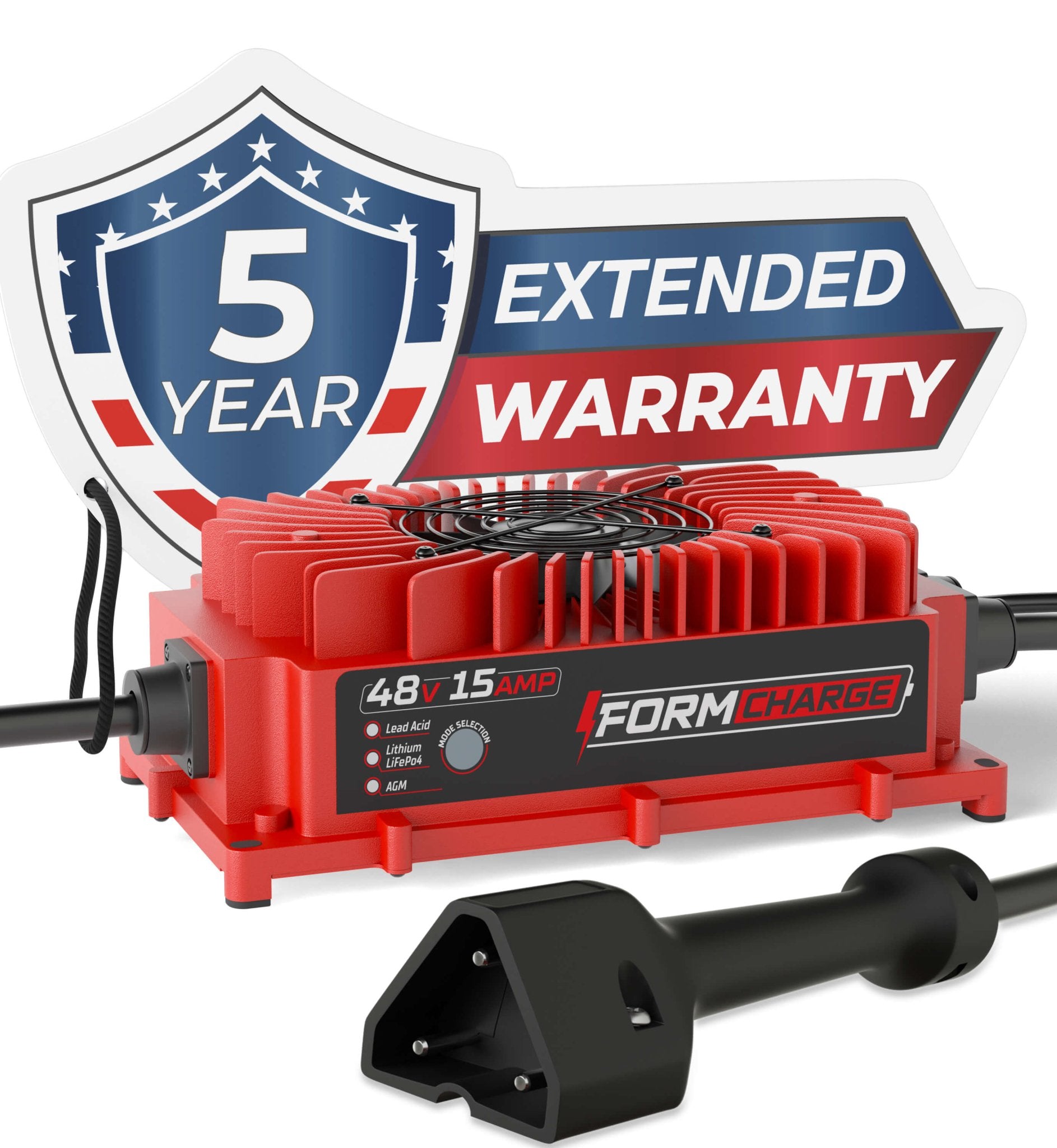

  • 5-Year Extended Warranty
  • Designed In Minnesota

Technical Specs

Current: 15 Amps DC
Voltage: 48 Volts
Battery Type Supported: Flooded Lead Acid, Lithium, AGM
AC Input Cord: 8ft
DC Output Cord: 8ft

Dimensions

Width: 10"
Depth: 5.25"
Height: 3"

Weight: 5.5 lbs

Safety Features

  • Short-Circuit: Yes
  • Overheating: Yes
  • Overcharge: Yes
  • Spark-Proof: Yes
  • Reverse Polarity: Yes

Certifications

  • FCC (Federal Communications Submission)
  • DOE (Department of Energy)
  • CEC (California Energy Commission)

Federal Communications Commission (FCC) statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

In The Box

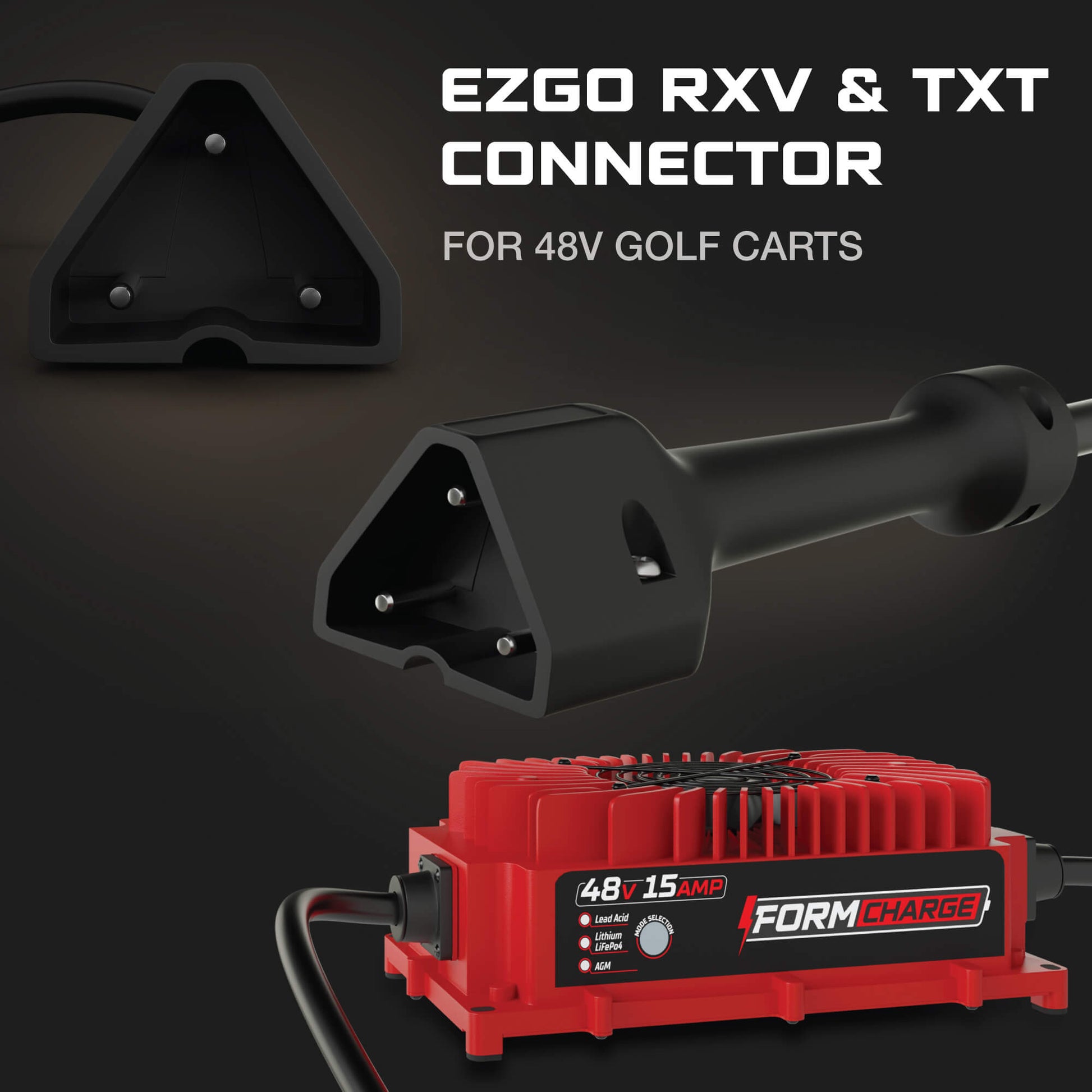

  • Charger with AC input cord & DC output cord with EZGO Triangle Plug
  • Product Manual

Product Manual

48V EZGO RXV & TXT Product Manual

Troubleshooting

Troubleshooting for 48V EZGO Golf Cart Chargers

View full details

FAQ'S

We do not recommend leaving your FORM charge charger plugged in for more than 30 days without checking on it. While FORM Charge has built-in safeguards, extended charging can lead to issues like battery drying or cell failure, which may damage the battery.

To protect your batteries during long-term storage, it's best to fill lead-acid batteries with distilled water, switch the cart to tow mode, and disconnect the main positive and negative cables from the battery pack. These steps help minimize battery drain and prevent potential damage.

All FORM Charge chargers come with a 24-month warranty.
If registered within 30 days of purchase, the warranty can be extended to a 60-month warranty.

You can expect it to take 3-8 hours. The amount of time varies depending on the type of batteries you have an how discharged they are.

Yes, the FORM Charge charger is a smart charger. It will use the voltages of the battery, determine how full they are and turn off when they have reached fully charged.

1) Lift up your golf cart seat to locate the battery compartment.

2) Count the number of holes on a battery

  • Usually 3, 4 or 6 holes

3) Multiply the number of holes by 2 to determine the golf cart battery voltage

  • Each hole/cell is equal to 2 volts

4) Multiply the golf cart battery voltage by the total number of golf cart batteries

Safety & Reliability In Every Charge

Set It & Forget It

4 Stage Smart Charge Technology

Deep Charge

Flashing Red -

Initial charge for deeply discharged batteries

Absorption Charge

Flashing Yellow -

Finishing the charge at a slower rate to avoid overcharging.

Finishing Charge

Flashing Green -

Topping off your batteries & optimizing for extended life.

Maintenance Mode

Solid Green -

Once fully charged, the charger will maintain & optimize the battery continuously until it is disconnected.

Golf Cart Compatibility

  • The FORM Charge 48V 15A charger is compatible with 48V EZGO RXV golf carts from 2008 through 2024, including 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, and 2024 models. It is also compatible with 48V EZGO TXT golf carts from 2014 through 2024, including 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, and 2024 models.

  • Replaces: Delta-Q ELiTE 10009053G03 & 913-4830-03, PowerWise QE 915-3610 & 915-4810, Delta-Q QuiQ 913-4800 & 913-4810, Delta-Q SC-48, EZGO EZ350, Allied Lithium, Lester Electrical Links BCL1RXV, Lester Electrical Summit II 30600, Lester Electrical TT-650W, Pro Charging Systems Eagle Performance i36154815 & i4818CH, Reliance SG-720, Schauer EP-113, Schauer Freedom JAC1548H-EZGO-RXV
