YAMAHA 48V 15A Golf Cart Charger - G19 & G22 - Lithium, LiFePO4, Lead Acid, AGM
YAMAHA 48V 15A Golf Cart Charger - G19 & G22 - Lithium, LiFePO4, Lead Acid, AGM
Safety & Reliability in Every Charge
Set It & Forget It
Set It & Forget It
- 5 Stage Smart Charge Technology
- SMARTSENSE Maintenance Mode

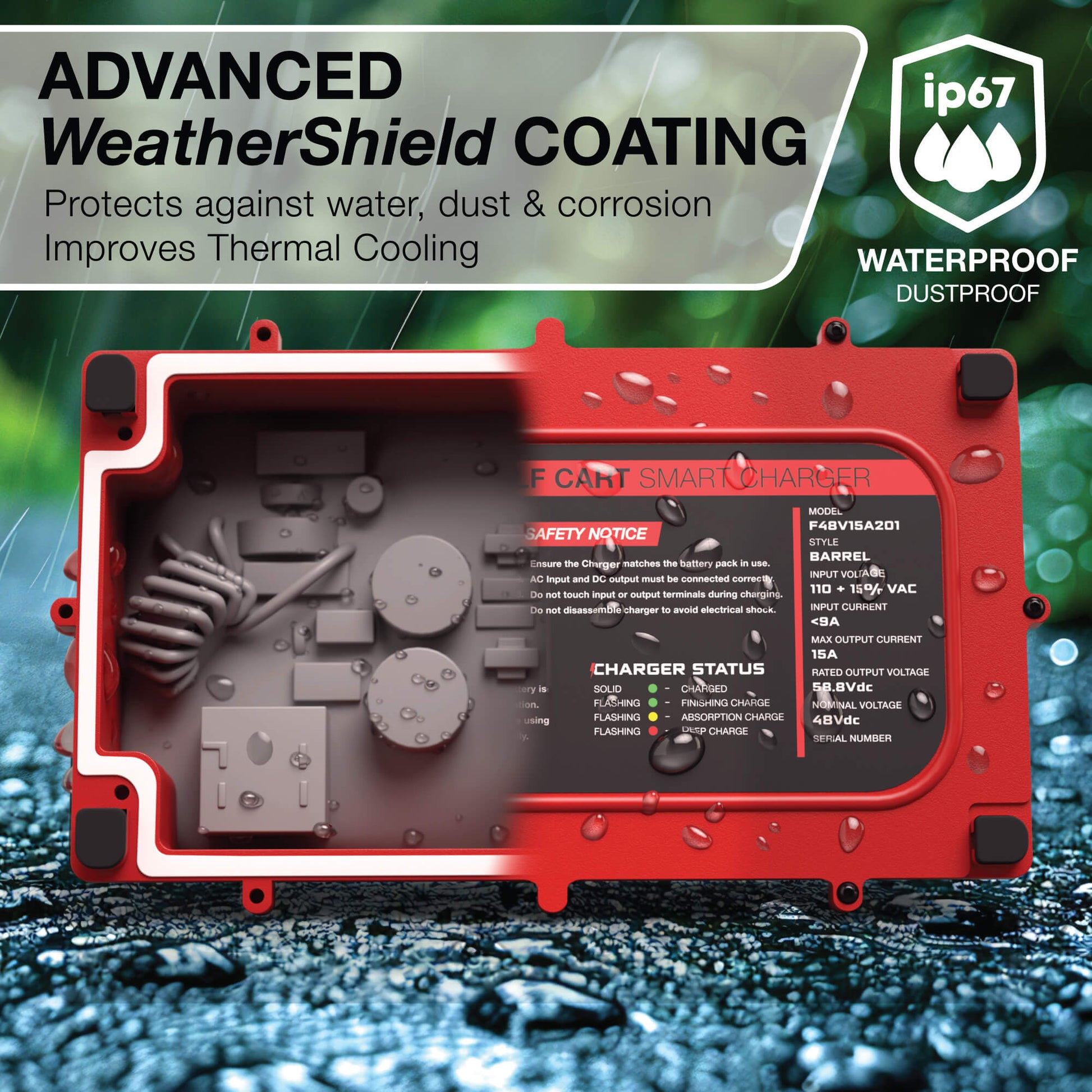

Advanced WeatherShield Coating
Advanced WeatherShield Coating
- Protects Against Water, Dust & Corrosion
- IP67 Waterproof
SparkGuard Technology
SparkGuard Technology
- Automatically cuts the voltage when disconnected from your cart
Compatible Golf Carts
Compatible Golf Carts
Yamaha G19
1996 - 2002
Yamaha G22
2003 - 2007
Couldn't load pickup availability
- Free Shipping & Returns

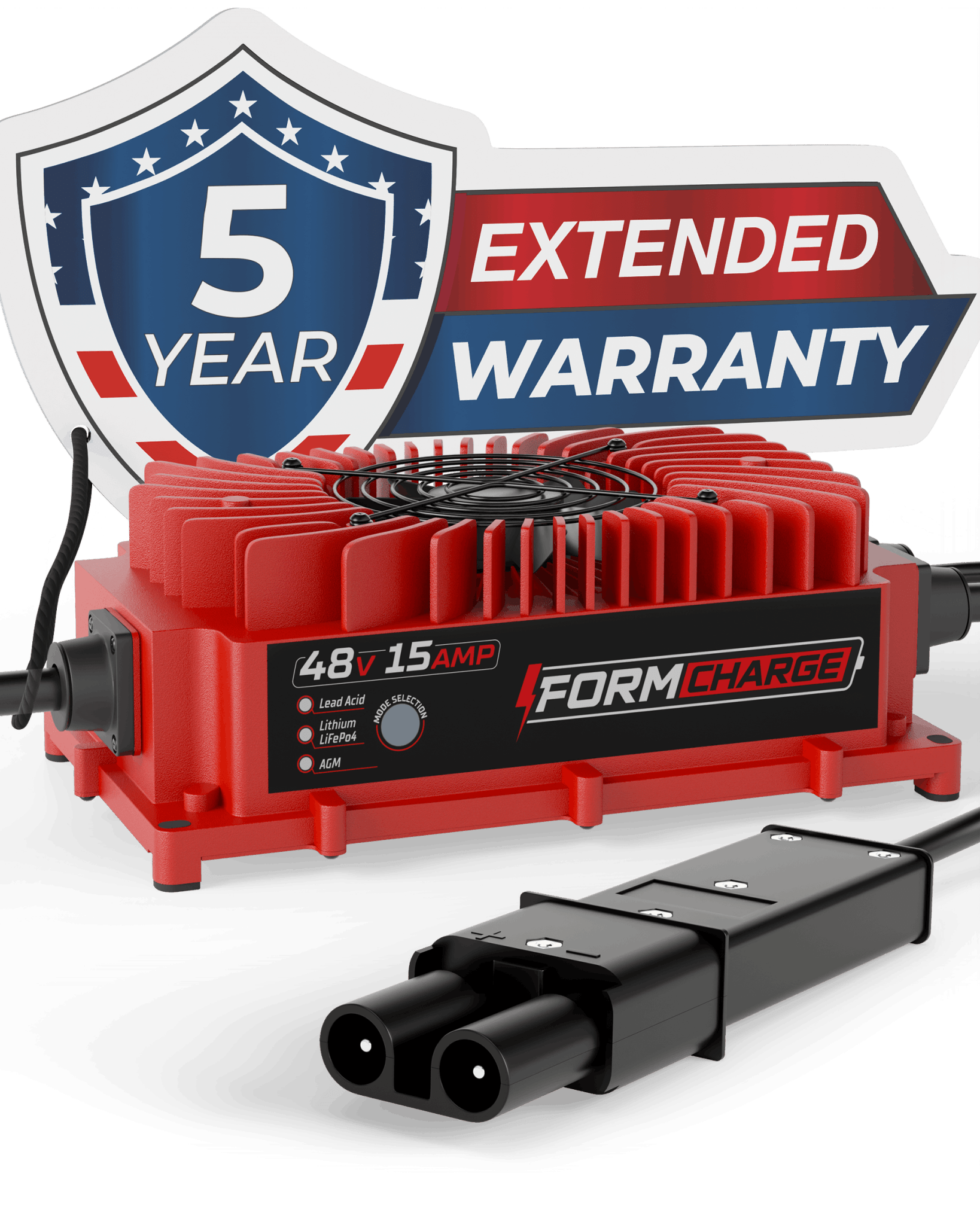

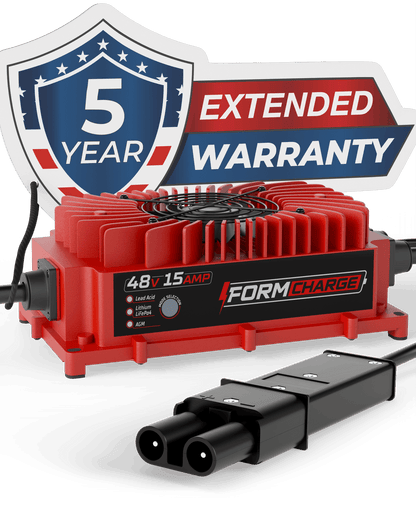

5-Year Extended Warranty
Designed In Minnesota
Technical Specs
Technical Specs
Current: 15 Amps DC
Voltage: 48 Volts

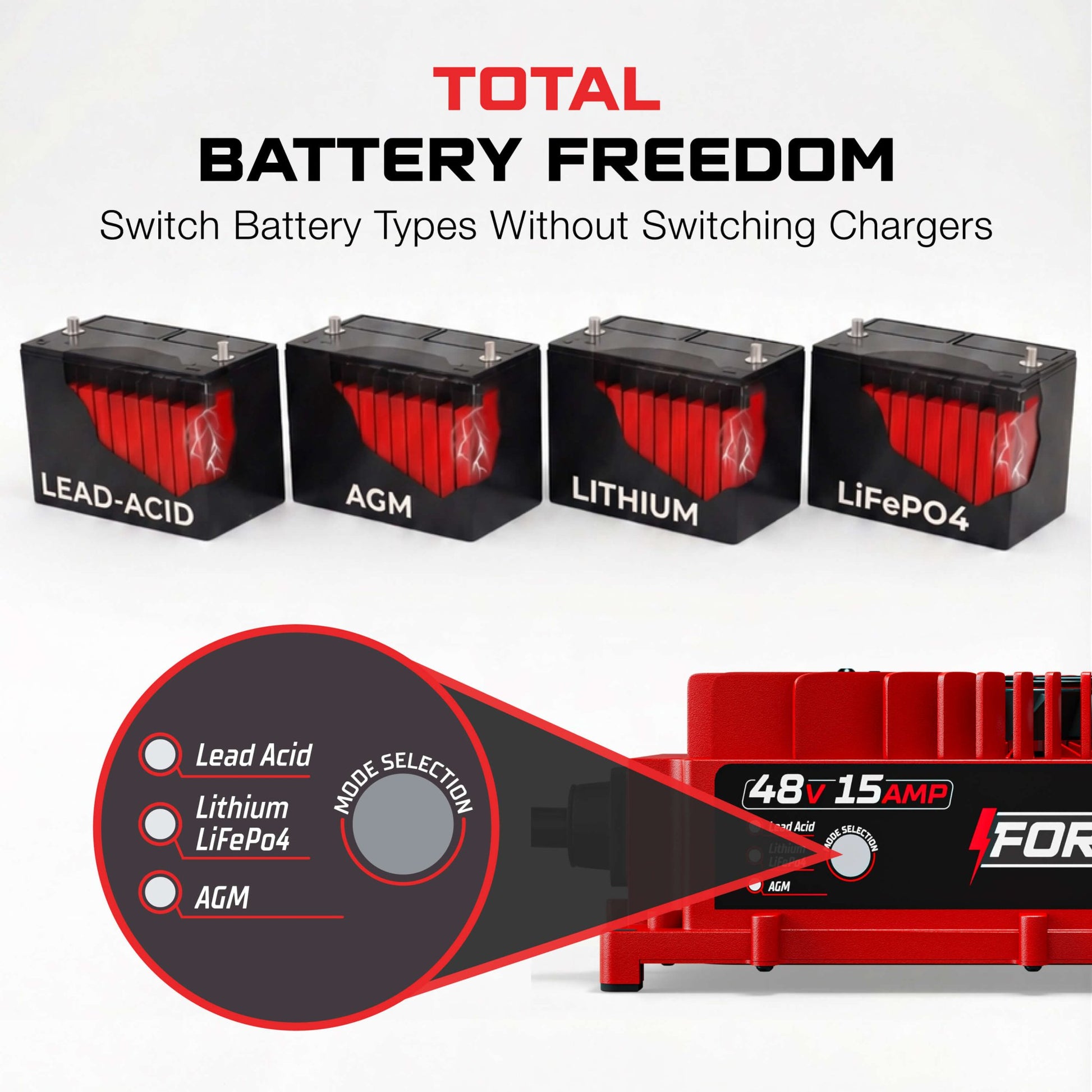

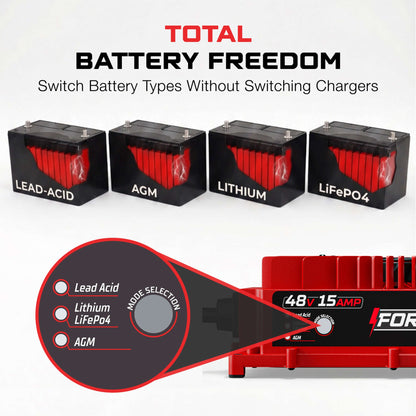

Battery Type Supported: Flooded Lead Acid, Lithium, AGM
AC Input Cord: 8ft
DC Output Cord: 8ft
Dimensions
Dimensions
Width: 10"
Depth: 5.25"
Height: 3"
Weight: 5.5 lbs
Safety Features
Safety Features
- Short-Circuit: Yes
- Overheating: Yes
- Overcharge: Yes
- Spark-Proof: Yes
- Reverse Polarity: Yes
Certifications
Certifications
- FCC (Federal Communications Submission)
- DOE (Department of Energy)
- CEC (California Energy Commission)
Federal Communications Commission (FCC) statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.
In The Box
In The Box

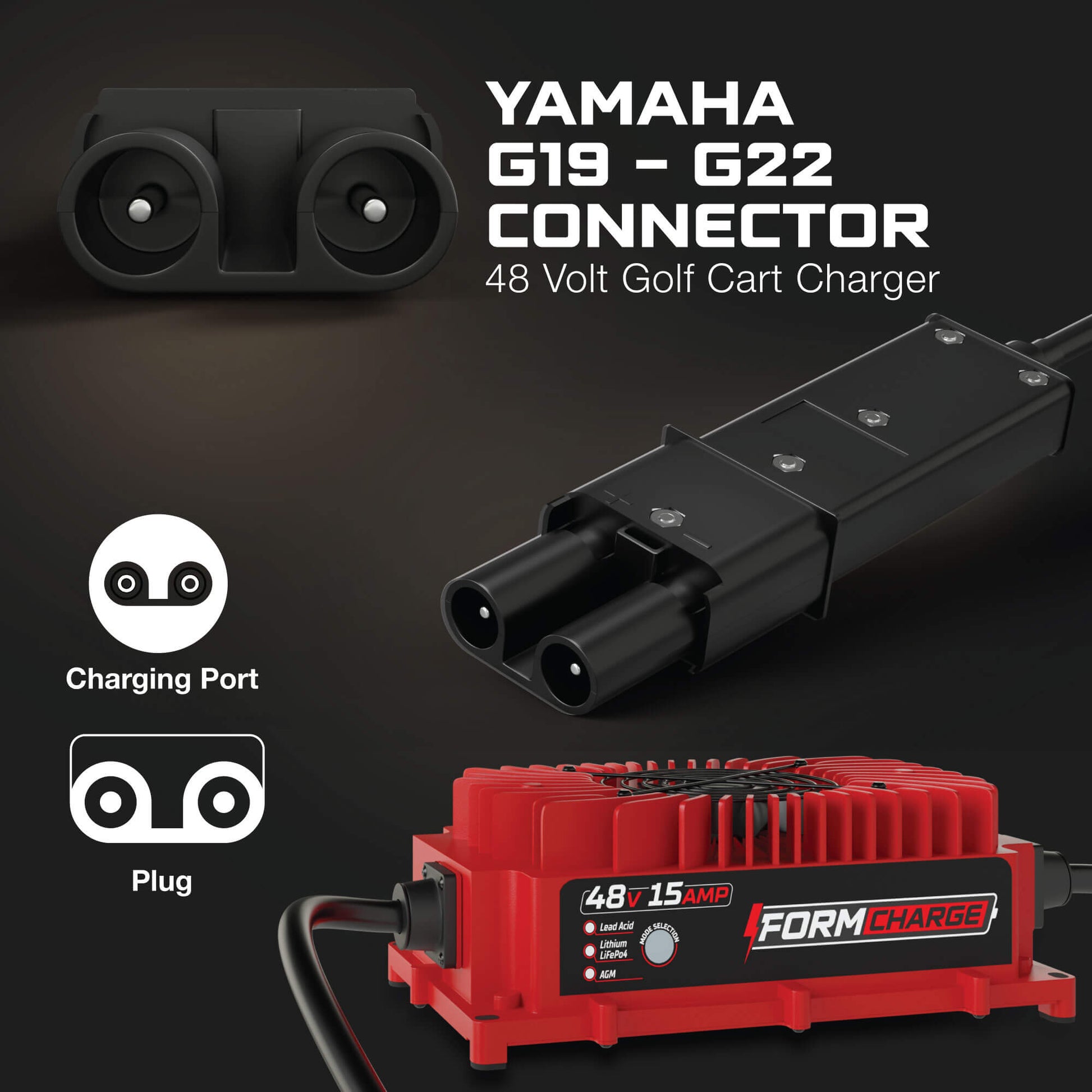

- Charger with AC input cord & DC output cord with Yamaha barrel Plug
- Product Manual
Product Manual
Product Manual
Troubleshooting
Troubleshooting
FAQ'S
We do not recommend leaving your FORM charge charger plugged in for more than 30 days without checking on it. While FORM Charge has built-in safeguards, extended charging can lead to issues like battery drying or cell failure, which may damage the battery.
To protect your batteries during long-term storage, it's best to fill lead-acid batteries with distilled water, switch the cart to tow mode, and disconnect the main positive and negative cables from the battery pack. These steps help minimize battery drain and prevent potential damage.
All FORM Charge chargers come with a 24-month warranty.
If registered within 30 days of purchase, the warranty can be extended to a 60-month warranty.
You can expect it to take 3-8 hours. The amount of time varies depending on the type of batteries you have an how discharged they are.
Yes, the FORM Charge charger is a smart charger. It will use the voltages of the battery, determine how full they are and turn off when they have reached fully charged.
1) Lift up your golf cart seat to locate the battery compartment.
2) Count the number of holes on a battery
- Usually 3, 4 or 6 holes
3) Multiply the number of holes by 2 to determine the golf cart battery voltage
- Each hole/cell is equal to 2 volts
4) Multiply the golf cart battery voltage by the total number of golf cart batteries
Safety & Reliability In Every Charge
Set It & Forget It

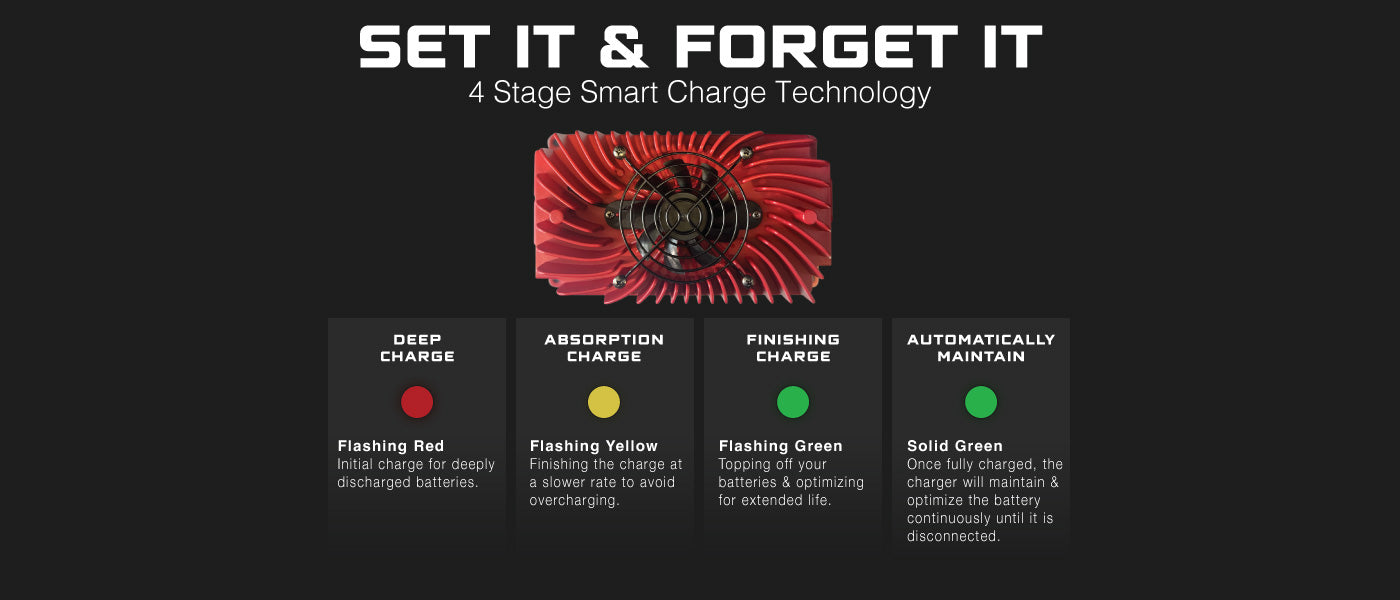

4 Stage Smart Charge Technology
Deep Charge
Flashing Red -
Initial charge for deeply discharged batteries
Absorption Charge
Flashing Yellow -
Finishing the charge at a slower rate to avoid overcharging.
Finishing Charge
Flashing Green -
Topping off your batteries & optimizing for extended life.
Maintenance Mode
Solid Green -
Once fully charged, the charger will maintain & optimize the battery continuously until it is disconnected.
Golf Cart Compatibility
-
The FORM Charge 48V 15A charger is compatible with 48V Yamaha G19 golf carts from 1996 through 2002, including 1996, 1997, 1998, 1999, 2000, 2001, and 2002 models. It is also compatible with 48V Yamaha G22 golf carts from 2003 through 2007, including 2003, 2004, 2005, 2006, and 2007 models.
-
Replaces: Lester Electrical 48 Volt Battery Charger JW2-H2107-03-00, Lester Electrical Summit Series II, Lester Electrical TT-650W: 07-039 & 07-024, Delta-Q QuiQ: 913-4800 & 913-4800-09, PRO Charging Systems Eagle Performance: i36154815 & i4818CH, Quick Charge QP, Reliance SG-720, Schauer Smart Charger JAC1548H.
